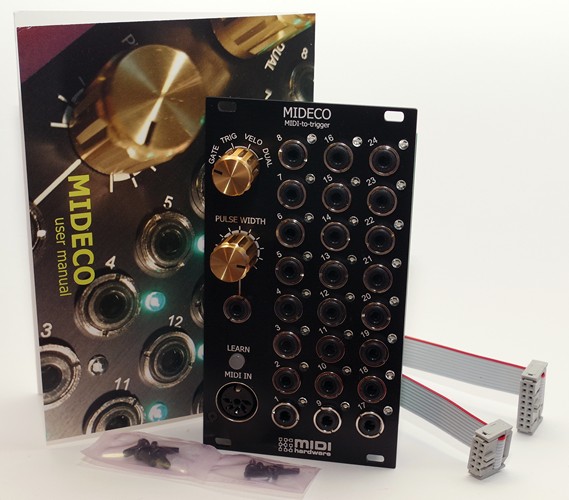

This Eurorack Module is a decoder of MIDI notes to 24 digital outputs. It can be used in one of 4 modes, serving as MIDI-to-gate, or MIDI-to-trigger, with possibility to alter trigger duration by note velocity. 4th working mode generates separate triggers for note-on and note-off. In all trigger modes, pulse width can be set with a knob and CV
Features:
- converts MIDI notes to 24 gate/trigger outputs
- pulsed modes possible, with fixed duration and velocity dependent
- dual mode with separate pulse for beginning and end of a note (12 output pairs)
- 5V active level, 0V rest level
- MIDI learn button for setting MIDI channel and starting note
- settings stored in nonvolatile memory
- reversed power polarity protected
- width 14HP
- power requirements 10mA on +12V rail
- more marketing talk
download user manual
